Description, details and additions of the system
Meine PC Historie:
1991
Intel 286 16MHz/ Intel-Board/ 1MB SIMM RAM/ ISA Grafik 256kB/ Conner 42MB HD/ no Sound/ 14in Goldstar 31,5Khz
1992
Intel 386DX 40MHz/ Intel-Board/ 4MB SIMM RAM/ ISA Grafik 512kB/ Conner 170MB HD/ Adlib/ 14in Goldstar 31,5Khz
1993
Intel 486DX 40MHz/ 80486 TMC/ 4MB SIMM RAM/ Cirrus Logic VESA 1MB/ Conner 170MB+ WD 340MB/ SB 2.0/ CK 14in 46Khz
1994
AMD 486DX2 66MHz/ 80486 TMC/ 8MB SIMM RAM/ Cirrus Logic VESA 1MB/ Conner 170MB+ WD 340MB/ SB 16ASP/ CK 14in 46Khz
1998
Intel Pentium MMX 200Mhz/ Gigabyte S2/ 32MB EDO/ S3 Virge DX 4MB/ WD 340MB+Seagate 2,37GB/ SB 16ASP+ Roland SCB7/ Yakumo 15in 52Khz
1999
Intel Pentium II 350MHz/ Gigabyte GA686BXE/ 128MB SD/ ATI Rage Magnum 32MB AGP/ IBM 10,1GB+Maxtor 20,6 GB/ SB Live!/ Acer 17in 86Khz
2001
AMD Athlon 1400c/ ECS K7S5A/ Apacer 512MB DDR/ Powercolor Geforce2 GTS 64MB, später Albatron GF4 4200TI Turbo 64MB AGP/ IBM 10,1GB+Maxtor 20,6 GB/ SB Live!/ Acer 17in 86Khz
2004
AMD Athlon64 3500+/ Abit AV8/ Corsair XMSPro 1GB/ Sapphire Radeon 9800Pro 128MB AGP/ 2x Samsung 160GB/ SB Audigy 2ZS/ Iiyama HM903DT 19in 132Khz
2005
AMD Athlon64 3500+/ Gigabyte GA-K8N Ultra SLI/ Kingston VS 2GB/ Gigabyte GF 7800GT 256MB PCIe/ 2x Samsung 160GB/ SB Audigy 2ZS/ Iiyama HM903DT 19in 132Khz
2006

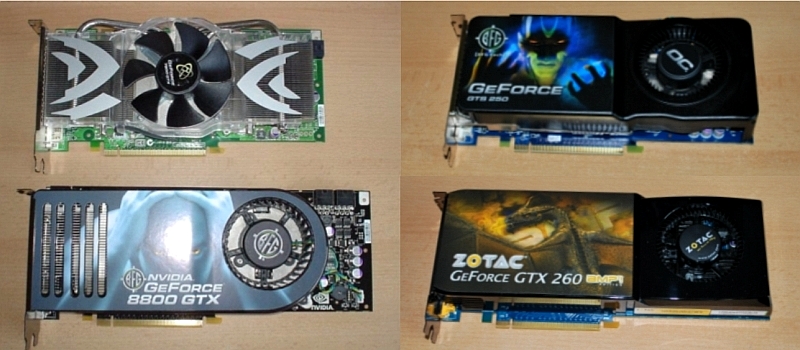

AMD Athlon64 X2 4800+/ Gigabyte GA-K8N Ultra SLI/ Kingston VS 2GB/ XFX 7900GTX XT 512MB->BFG 8800GTX 768MB->Zotac GTX 260 AMP 896MB / 2x Samsung -> 600GB/ SB Audigy 2ZS/ Dell 2407WFP 24in TFT + Dell 1707FP 17in
18 Jahre PC-Freak
Aktuelles Projekt:
Komplett neuer PC auf Basis des Core i7 980X. Damit wird dieser PC hier nach fünf Jahren in Rente geschickt. Das neue Projekt ist bei Sysprofile unter Bluesilentpro zu finden.
Zockersetup für Surroundgaming in 5120x1200.
Dell 2007FP - 3007WFP-HC - 2007FP Triplehead. Auflösung 4960x1600.
Habe dieses Setup ausprobiert, es lag mir aber nicht.

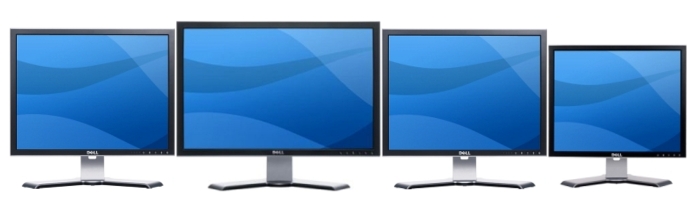

Aktuelle TFT-Sammlung: Dell 3007WFP-HC, 2007FP, 2407WFP, 2007FP und 1707FP.
Die 8800GTX ist mir abgeraucht - die GTX 260 momentan im System. Dazu gesellt sich noch ne Gigabyte 8400GS für Triple/Quadhead
TFT - Display
| Manufacturer |
Dell |
| Model |
Ultrasharp 2407WFP + 2x2007FP + optional 1707FP |
| Response time in ms |
8 ms |
| Screen diagonal (in inch) |
0" |
| Visible screen diagonal (in inch) |
0.0" |
| Pixel distance (in mm) |
0.27mm |
| Max. resolution at how many Hz |
5120x1200 (Triplehead) |
| Max. vertical frequency |
60 Hz |
| Max. horizontal frequency |
0 kHz |
| Extras |
Pivot-Funktion, 3 USB 2.0 Hubs, Multicardreader |
| Contrast ratio |
600 : 1 |
| Brightness in cd/m² |
300 cd/qm |
| Modifikationen |
Ultramon und SoftTH für Surroundgaming. |
Processor
| Model |
AMD Athlon64 X2 4800+ (Toledo Dualcore) |
| Clock frequency (MHz) |
2412 MHz |
| Vcore voltage |
1.350 V |
| PCI clock |
34.0 MHz
|
| AGP clock |
68.0 MHz
|
| Processor muliplier |
12.0 x
|
| Processor FSB |
201.0 MHz
|
| Temperature idle |
29.0° |
| Tempetarure load |
48.0° |
CPU heatsink
| Model |
Zalman AlCu CNPS 7000b |
| Modifications |
Ist seit 2004 im Betrieb. oO
|
Random Access Memory
| RAM at DIMM#3 |
1024 MB Kingston ValueSelect |
| RAM at DIMM#4 |
1024 MB Kingston ValueSelect |
| Memory clock |
201MHz |
Timing at Bios
|
3-3-3-8 |
Motherboard
| Model |
Gigabyte K8N Ultra-SLI |
| Chipset |
nvidia nForce4 SLI |
| Revision number of the motherboard |
A3 |
| Biosversion |
F6 |
| Motherboard temperature idle |
25.0°C |
| Motherboard temperature load |
38.0°C |
| Motherboard modifications |
Ohne Dual Bios wäre das Board jetzt vielleicht schon Schrott  |
Graphics card
| Manufacturer |
Zotac |
| Model |
GeForce GTX 260 AMP! Edition |
| Chipset |
GT200 |
| Graphics card memory in MB |
896 |
| Bios version |
6200.49 |
| Core clock (not overcloked) |
576 MHz |
| Memory clock (not overclocked) |
999 MHz |
| Core clock (overcloked) |
650 MHz |
| Memory clock (overclocked) |
1050 MHz |
| Modifications |
Für mehr als zwei Bildschirme steckt noch eine passive 8400GS von Gigabyte im Rechner. |

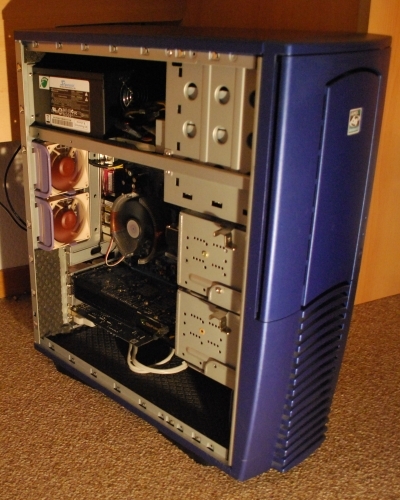

Case
| Case model / manufacturer |
Chieftec CS-601 |
| Case type |
Midi Tower |
| 3,5 inch slots |
2 |
| 3,5 inch slots (internal) |
6 |
| 5,25 inch slots |
3 |
| Modifications / further information |
Selbstgefertigte Gehäusedämmung.
|
| Case fans |
4x Noctua NF-R8 80mm |
| Further fans in the case |
|
Power supply
| Power supply model / manufacturer |
Seasonic M12 |
| Power supply capacity |
600 Watt |
| Power supply capacity combined |
576 Watt |
| Modifications |
48A@+12V, modular, 80+ Effizienz, Active-PFC, S²FC
|
Components
| 1.Component ( PCI # 2 ) |
| Component |
Creative Soundblaster X-Fi Platinum |
| Explanation |
|
| IRQ |
0 |
| DMA |
0 |
| Driver version / details of the drivers |
|
Periphery
| Manufacturer / Model |
Cherry eVolution Stream |
| Interface: |
USB 2.0 |
| Description: |
|
| Manufacturer / Model |
Logitech G5 Refresh |
| Interface: |
USB 1.0/1.1 |
| Description: |
|
| Manufacturer / Model |
Western Digital 2x WD MyPassport 500GB |
| Interface: |
USB 2.0 |
| Description: |
|
| Manufacturer / Model |
Nikon D60 DSLR |
| Interface: |
USB 2.0 |
| Description: |
|
| Manufacturer / Model |
Sony TRV22E Digicam |
| Interface: |
Firewire |
| Description: |
MiniDV |
| Manufacturer / Model |
Canon Pixma MP620 |
| Interface: |
USB 2.0 |
| Description: |
|
| Manufacturer / Model |
Teufel Concept E |
| Interface: |
Soundkarte |
| Description: |
|
| Manufacturer / Model |
Sennheisser HD 580 Precision |
| Interface: |
Soundkarte |
| Description: |
Kopfhörer |
| Manufacturer / Model |
Trust Webcam |
| Interface: |
USB 2.0 |
| Description: |
|
| Manufacturer / Model |
TomTom 920T |
| Interface: |
USB 2.0 |
| Description: |
Navi |
Operating system
| Operating system |
Windows XP Pro (Service Pack 2) |
| Drivers, bugfixes, comments to the OS |
|
