Description, details and additions of the system

Mein Traum-PC :D

TFT - Display
Manufacturer Hewlett Packard
Model w2207h
Response time in ms 5 ms
Screen diagonal (in inch) 22"
Visible screen diagonal (in inch) 22.0"
Pixel distance (in mm) 0.28mm
Max. resolution at how many Hz 1680x1050@60Hz
Max. vertical frequency 75 Hz
Max. horizontal frequency 93 kHz
Extras HDMI // Analog D-Sub
Contrast ratio 1000 : 1
Brightness in cd/m² 300 cd/qm
Modifikationen Testbericht: http://www.prad.de/new/monitore/test/2007/test-hp-w2207.html
HP w2207h

HP w2207h

HP w2207h

HP w2207h

HP w2207h

HP w2207h


Processor
Model INTEL Core 2 Quad (Q9550)
Clock frequency (MHz) 2833 MHz
Vcore voltage 1.150 V
PCI clock 33.0 MHz @ 33.0 MHz
AGP clock 0.0 MHz
Processor muliplier 8.5 x
Processor FSB 333.3 MHz
Temperature idle 51.0°
Tempetarure load 62.0°
Modifications [Alle Temp-Werte: Hochsommertemperaturen]
Intel Core 2 Quad Q9550

Intel Core 2 Quad Q9550

CPU heatsink
Model Noctua NH-U12P
Modifications Sehr gute Kühlleistung bei geringer Lautstärke.

Der Kühler wird fest verschraubt, was dem fummeligen Push-Pin-System auf jeden Fall vorzuziehen ist!

Außerdem ist er wahrlich riesig, ein Hochaus im PC ^^.
Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Noctua NH-U12P

Alter Kühler...neuer Kühler...GRÖßE ist doch alles!

Alter Kühler...neuer Kühler...GRÖßE ist doch alles!

Random Access Memory
RAM at DIMM#1 2048 MB DDR2-800 GeiL "Black Dragon Series"
RAM at DIMM#2 2048 MB DDR2-800 GeiL "Black Dragon Series"
Memory clock 667MHz
Timing at Bios
5-5-5-15-36-4-4-4-4
DDR2-800 GeiL "Black Dragon Series"

DDR2-800 GeiL "Black Dragon Series"

Motherboard
Model MSI P35 Neo2 FR
Chipset Intel P35
Revision number of the motherboard 1.1
Biosversion 1.8
Motherboard temperature idle 45.0°C
Motherboard temperature load 55.0°C
Motherboard modifications Ein geniales Mainboard! Das Layout ist fast perfekt und es sind gerade die kleinen Details, die überzeugen:

- insgesamt 6 Anschlüsse für Gehäuse/CPU-Lüfter
- Mini-LED an jedem PCI/PCIe-Port
- Mini-LED Diagnose-Anzeige
- BIOS-Reset Button

Dazu kommt noch das durchdachte Heatpipe-Design, welches dafür sorgt, dass der Chipsatz nichtmal handwarm wird, sowie der extrem günstige Preis.

Empfehlung!

[Alle Temp-Werte: Sommertemperaturen]
MSI P35 Neo2 FR

MSI P35 Neo2 FR

Graphics card
Manufacturer Zotac
Model Geforce GTX 260² (55nm)
Chipset GT200b
Graphics card memory in MB 896
Bios version
Core clock (not overcloked) 576 MHz
Memory clock (not overclocked) 2000 MHz
Core clock (overcloked) MHz
Memory clock (overclocked) MHz
Modifications Die 55nm Version der GTX 260 mit 216 Shadercores ist nochmal etwas kühler und damit auch leiser als die 65nm Version.

Temperaturen:

idle -> 54°C
last -> 75 bis 80°C

[Alle Temp-Werte: Hochsommertemperaturen]
Zotac GTX 260²

Zotac GTX 260²

Zotac GTX 260² (Packshot)

Zotac GTX 260² (Packshot)

Zotac GTX 260² (Zubehör)

Zotac GTX 260² (Zubehör)

Case
Case model / manufacturer Coolermaster Cosmos 1000
Case type Big Tower
3,5 inch slots 1
3,5 inch slots (internal) 6
5,25 inch slots 4
Modifications / further information
Case fans 2x 120mm Noctua NF-S12-800 oben

1x 120mm Noctua NF-S12-800 hinten

1x 120mm Noctua NF-P12@7V unten (belüftet Grafikkarte)

1x 120mm Noctua NF-P12@5V vorne (belüftet HDD)
Further fans in the case Links:

Gehäusetest: http://www.hardware-mag.de/artikel/gehaeuse/schwergewicht_cooler_master_cosmos_1000/

Noctua NF-P12: http://www.noctua.at/main.php?show=productview&products_id=12&lng=de&set=1

Noctua NF-S12: http://www.noctua.at/main.php?show=productview&products_id=4&lng=de
Gesamtansicht des Gehäuses

Gesamtansicht des Gehäuses

Obere Front

Obere Front

Fronttür

Fronttür

"Auspuff" ^^

"Auspuff" ^^

Seitenansicht

Seitenansicht

Luftfilter

Luftfilter

Power supply
Power supply model / manufacturer be quiet! Dark Power Pro P7 550W ATX 2.2
Power supply capacity 550 Watt
Power supply capacity combined 170W (+3,3V & +5V) // 528W (4x +12V) Watt
Modifications Ein sehr außergewöhnliches Netzteil. Soviel Zubehör gab es nichtmal zu meinem Gehäuse! :D

Weitere Highlights:

- Kabel-Management (bietet imho cleverer zusammengestellte Kabelstränge, als das bei anderen Herstellern der Fall ist)
- Active Power Factor Correction (PFC)
- 4 getrennte 12V-Leitungen
- Nachlaufsteuerung für Netzteillüfter sowie bis zu 4 Gehäuselüfter

Zudem bietet es genug Power, auch für zukünftige Systeme. Moderne Standards werden eh erfüllt, es gibt einen 24pin-ATX-Stromstecker (mit Adapter für 20pin), zwei 6+2pin (zusammensteckbar) PCIe-Stromstecker sowie einen 4pin und 8pin 12V-ATX/EPS-Stromstecker.
be quiet! Dark Power Pro P7 550W

be quiet! Dark Power Pro P7 550W

be quiet! Dark Power Pro P7 550W

be quiet! Dark Power Pro P7 550W

Components
1.Component ( PCI # 1 )
Component Creative Labs Soundblaster X-FI Xtreme Gamer
Explanation macht Töne
IRQ 16
DMA 0
Driver version / details of the drivers Vollwertige kleine X-FI
2.Component ( PCI # PCIe )
Component DeLOCK / JMicron PCIe eSATA-Controller
Explanation Ein eSATA-Controller für den PCIe-Bus
IRQ 0
DMA 0
Driver version / details of the drivers Nicht den DeLOCK-Treiber verwenden, sondern gleich den hier: ftp://driver.jmicron.com.tw/jmb36x/Win2k_xp_Vista/
Creative Labs Soundblaster X-FI Xtreme Gamer

Creative Labs Soundblaster X-FI Xtreme Gamer

tt-budget S2-3200

tt-budget S2-3200

DeLOCK / JMicron eSATA-Controller für PCIe

DeLOCK / JMicron eSATA-Controller für PCIe

Periphery
Manufacturer / Model Logitech X-540
Interface: Soundkarte
Description: 5.1-Boxensystem
Manufacturer / Model Microsoft Sidewinder X6
Interface: USB 2.0
Description: Gaming-Keyboard mit vielen Spezialtasten und Hintergrundbeleuchtung. Tastenanschlag im Laptopdesign, wodurch sehr schnelles Tippen ermöglicht wird.
Manufacturer / Model Canon CanoScan Lide25
Interface: USB 2.0
Description: Scanner
Manufacturer / Model Logitech MOMO Racing Force Feedback Wheel
Interface: USB 2.0
Description: Force Feedback Lenkrad
Manufacturer / Model Microsoft XBox360 Controller
Interface: USB 2.0
Description: Gamepad
Manufacturer / Model Logitech G9 Laser
Interface: USB 2.0
Description: Die beste Maus der Welt (TM) *g*
Manufacturer / Model Logitech Extreme 3D Pro
Interface: USB 2.0
Description: Gut verarbeiteter und ergonomisch exzellenter Joystick
Manufacturer / Model PNY attaché
Interface: USB 2.0
Description: 8GB USB-Stick
Manufacturer / Model Freecom Freecom Harddrive Pro 400GB eSATA
Interface: sonstiges
Description: Externe Festplatte für den eSATA-Port (Modifiziert: Samsung Ecogreen F2 1000GB eingebaut)

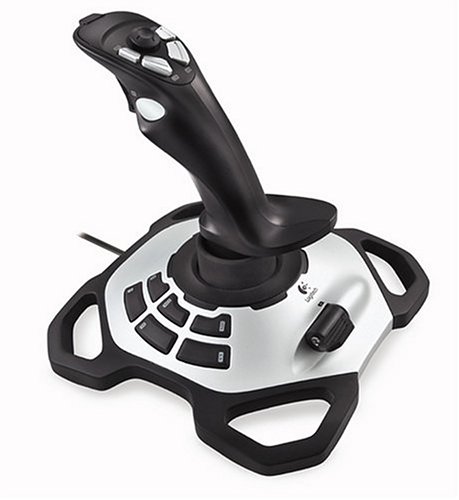

Logitech Extreme 3D Pro

Logitech Extreme 3D Pro

Logitech X-540

Logitech X-540

Microsoft Sidewinder X6

Microsoft Sidewinder X6

Logitech G9 Laser

Logitech G9 Laser

Logitech MOMO Racing Force Feedback Wheel

Logitech MOMO Racing Force Feedback Wheel

Microsoft XBox360 Controller

Microsoft XBox360 Controller

PNY attaché 8GB USB-Stick

PNY attaché 8GB USB-Stick

Freecom Harddrive Pro

Freecom Harddrive Pro

Drives
IDE Device
Drive LG Electronics GSA-H62N
Description Super-Multi-Format-DVD-Brenner
More Information
Firmware
Cache 2048 KB
Controller Mainboard-Chipsatz (Intel ICH9)
Channel SATA 4
ATA interface S-ATA I/150
Connected to S-ATA II/300
Type of the Drive DVD-Brenner
Performance CD
CD-ROM CD-R CD-RW
48 48 40
- 48 32
Read
Write
Performance DVD
DVD-ROM DVD-R DVD-RW DVD-R DL DVD+R DVD+RW DVD+R DL DVD-RAM
16 16 13 12 16 13 12 5
- 18 6 10 18 6 10 12
Read
Write
IDE Device
Drive LG Electronics DVD-Rom DH16NS30
Description 16x DVD-Rom/52x CD-Rom
More Information Eines der, wenn nicht gar DAS leiseste Laufwerk, das ich jemals hatte. Sowohl das Abspielen von Film-DVDs, als auch das Lesen von Daten-DVDs (Spielen) geschieht unglaublich leise.
Firmware
Cache 0 KB
Controller Mainboard-Chipsatz (Intel ICH9)
Channel SATA 4
ATA interface S-ATA I/150
Connected to S-ATA II/300
Type of the Drive DVD-ROM
Performance CD
CD-ROM CD-R CD-RW
- - -
- - -
Read
Write
Performance DVD
DVD-ROM DVD-R DVD-RW DVD-R DL DVD+R DVD+RW DVD+R DL DVD-RAM
- - - - - - - -
- - - - - - - -
Read
Write
IDE Device (Boot drive)
Drive Western Digital Caviar Black 750GB (WD7501AALS)
Description Gute Festplatte
More Information http://www.wdc.com/de/products/products.asp?driveid=487
Firmware
Cache 32767 KB
Controller Mainboard-Chipsatz (Intel ICH9)
Channel SATA 4
ATA interface S-ATA II/300
Connected to S-ATA II/300
Capacity 750 GB
Speed 7200 U/min
Access Time 8.7 ms
Time to up 0.0 Sek.
Temperature while in use 9.9 °C
Coolertype Luftkühlung
Coolerdescription Noctua NF-P12 120mm @ 19dba
Operating system
Operating system Windows Vista Business 64bit (Servicepack 2 + aktuelle Updates)
Drivers, bugfixes, comments to the OS Intel Chipsatztreiber 9.1.0.1012 // DirectX 9.0c + DirectX 10 // GeForce 191.07 WHQL
